| Application: | Casting, Spinning |
| Brand: | CRB |
CRB LZR Medium Duty Spin Cast Guides - Model MDZG
$3.79 to $11.99
Ring: Ultra-Thin Zirconium | Sizes: 8-30 | Frame: Black, Polished & Gunsmoke

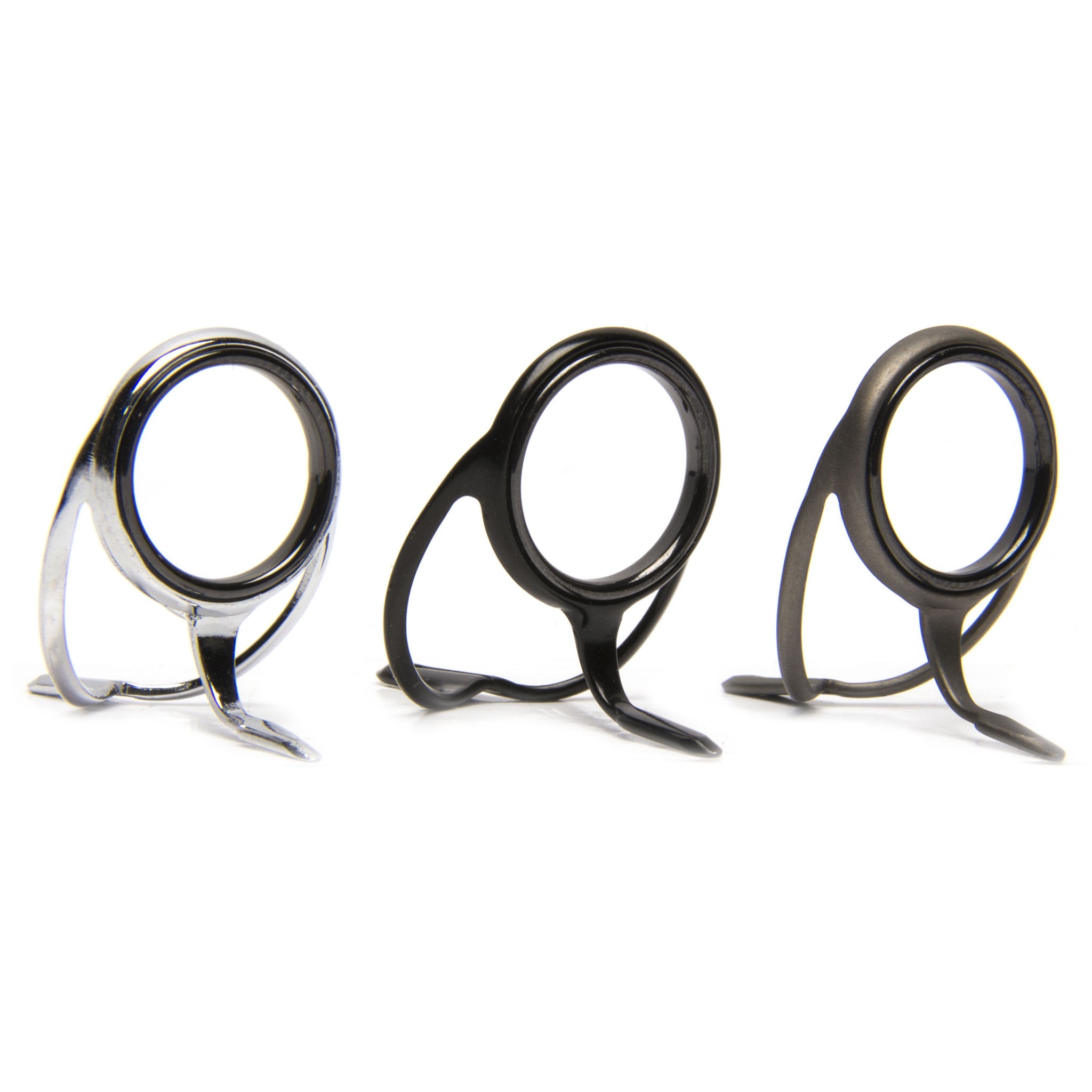

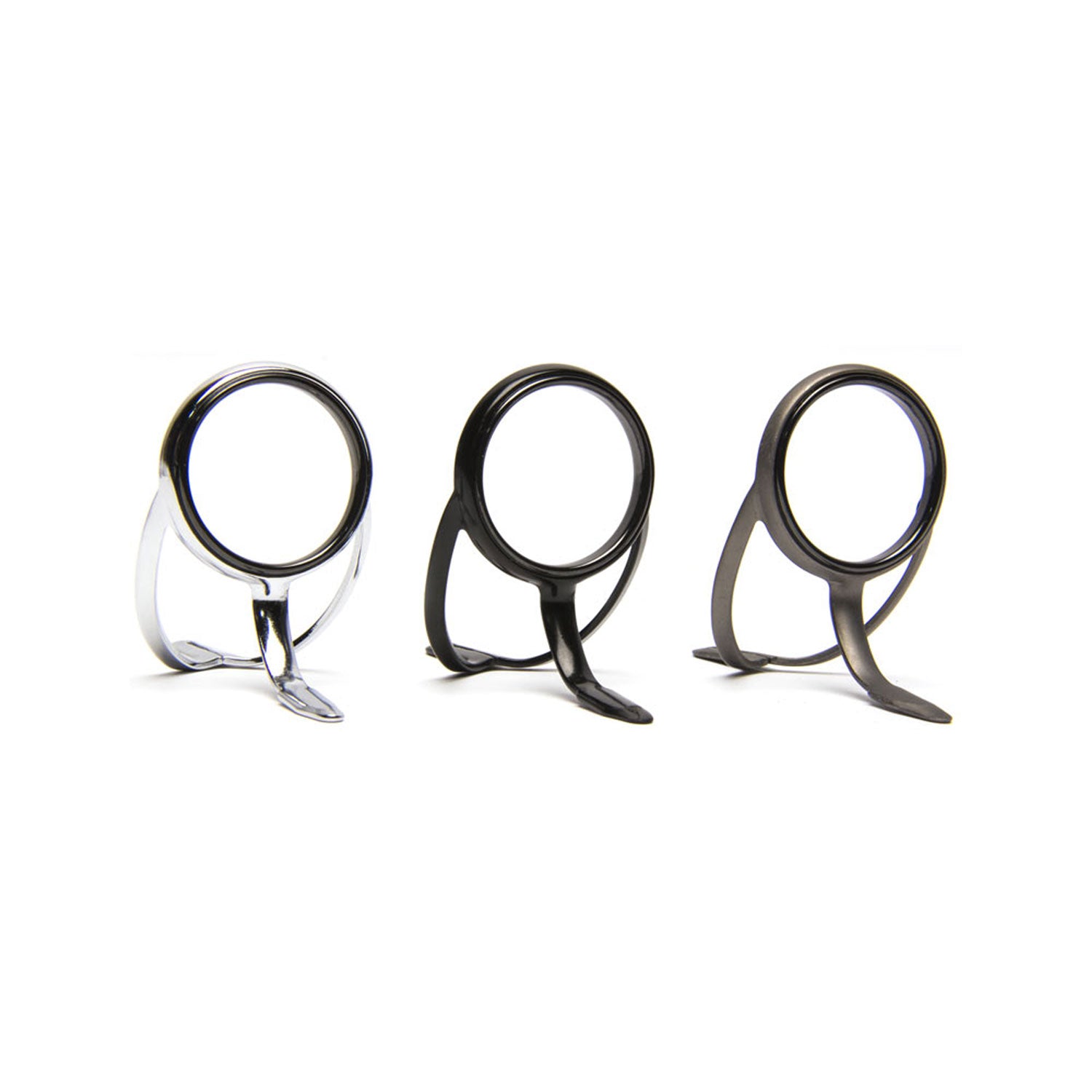

CRB LZR Medium-Duty Spinning & Casting Guides - Model MDZG
LZR Medium-Duty Guides are designed with ultra-thin zirconium inserts and reverse pressed stainless steel frames to be incredibly lightweight with maximum durability.
These medium-duty, double-foot guides can be used for either spinning or casting rods.
These LZR double-foot spinning/casting guides introduce CRB’s lightest and most innovative medium-duty guide system yet.
The advanced engineering of the ultra-thin, super light zirconium insert provides a high-density, polished ring that is then pressed into the stainless steel frames. Featuring a larger and smoother opening, the zirconia insert rings bring increased durability for braid as well as enhanced heat dissipation that reduces wear on fishing line and increases casting distance and accuracy.
From reducing line tangles and overall weight, to increasing casting distance, strength, and ring retention, the CRB LZR double-foot casting guides combine superior performance and unbeatable value for rod builders everywhere.
- CRB LZR Stainless Steel Medium-Duty Spinning and Casting Guides
- Pressed Ultra-Thin, Super Light Zirconium Rings
- Increased Durability and Strength — with Less Material and Weight
- Arrowed Guide Foot for Maximum Holding and Guide Security
- Ring Sizes: 8 through 30
- Available in 3 Premium Frame Finishes: Black, Polished, or Gunsmoke
Ultra-Thin LZR ring is 50% thinner
Includes CRB's Lifetime Limited Warranty
Premium Stainless Steel Frame Finishes
CRB LZR Guides - Technology
CRB introduces the LZR line of rod guides as its lightest and most advanced design yet in a family of high-performance rod components. Engineered with ultra-thin, super light zirconia rings, the LZR guides incorporate a high-density, polished insert ring that is 50% thinner than standard ceramic rings with an inner diameter up to 10% larger than comparable guides.
This guide technology allows the LZR series to be incredibly light, yet durable enough for the toughest braid—while also featuring enhanced heat dissipation that reduces wear on fishing line and increases casting distance as well as accuracy.
The LZR Guides are available in single-foot spinning, double-foot casting, medium-duty spinning/casting, running guides, and even tip tops; light and medium-duty.
Ultra-Thin Ring
Pressed Ultra-Thin, Super Light Zirconium Rings
Superior Performance
Increased Durability and Strength—with Less Material and Weight
Secure Foot
Arrowed Guide Foot for Maximum Holding and Guide Security
Sized for Your Needs
Ring Sizes: 8 through 30
3 Premium Finishes
Available in Black, Polished, or Gunsmoke
Lifetime Limited Warranty
Performance, guaranteed
Model MDZG - Guide Specifications
| Ring Size MM | Guide Height MM |
|---|---|
| 8 | 13.61 |
| 10 | 16.52 |
| 12 | 19.72 |
| 16 | 24.56 |
| 20 | 31.04 |
| 25 | 38.93 |
| 30L | 45.06 |
Guide Spacing for Spinning & Casting Rods

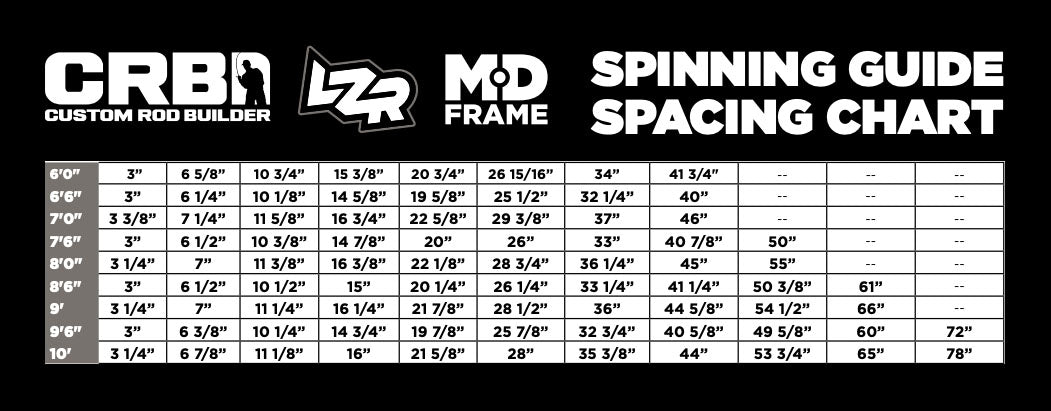

LZR Spinning Rod Guide Spacing
All measurements start at the tip
