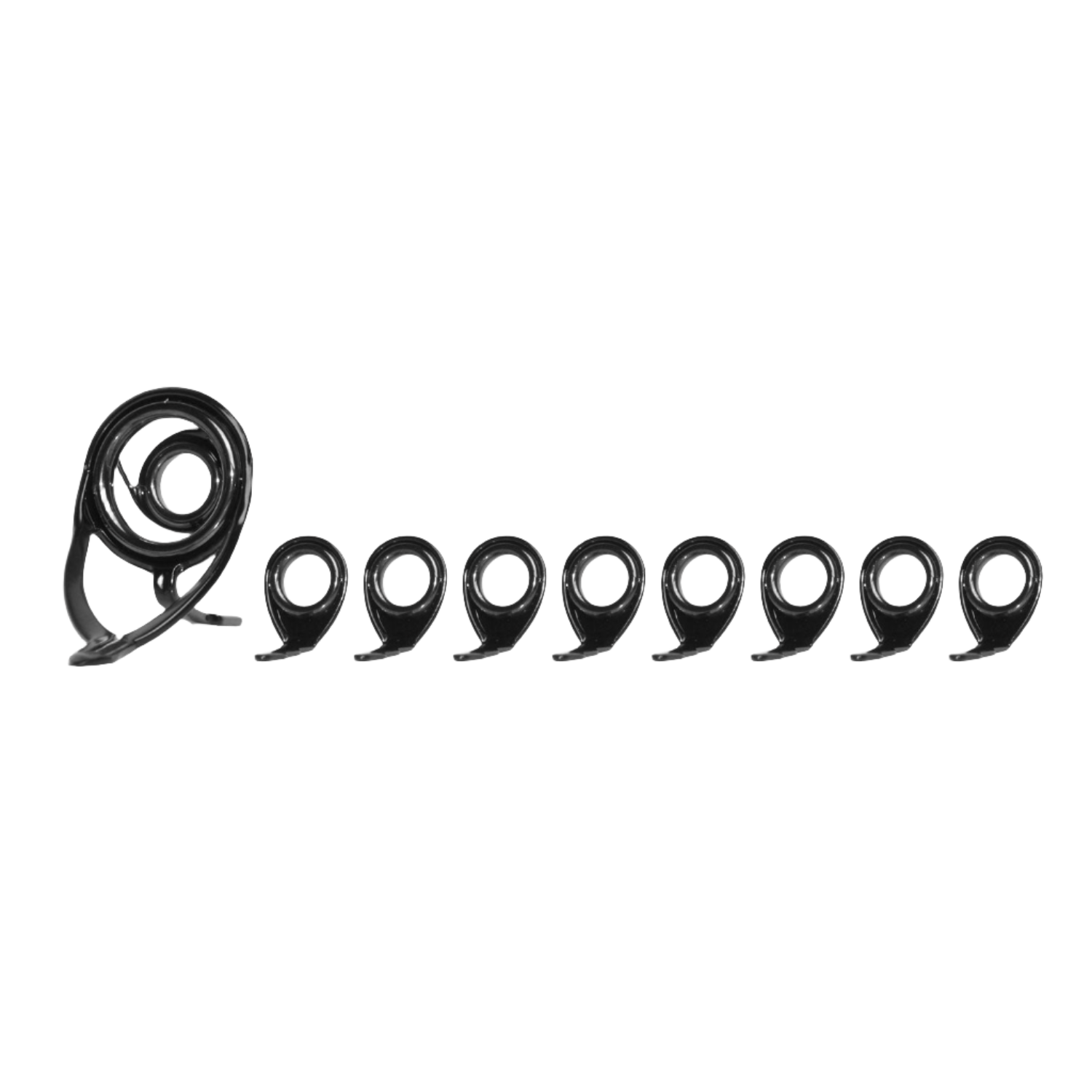

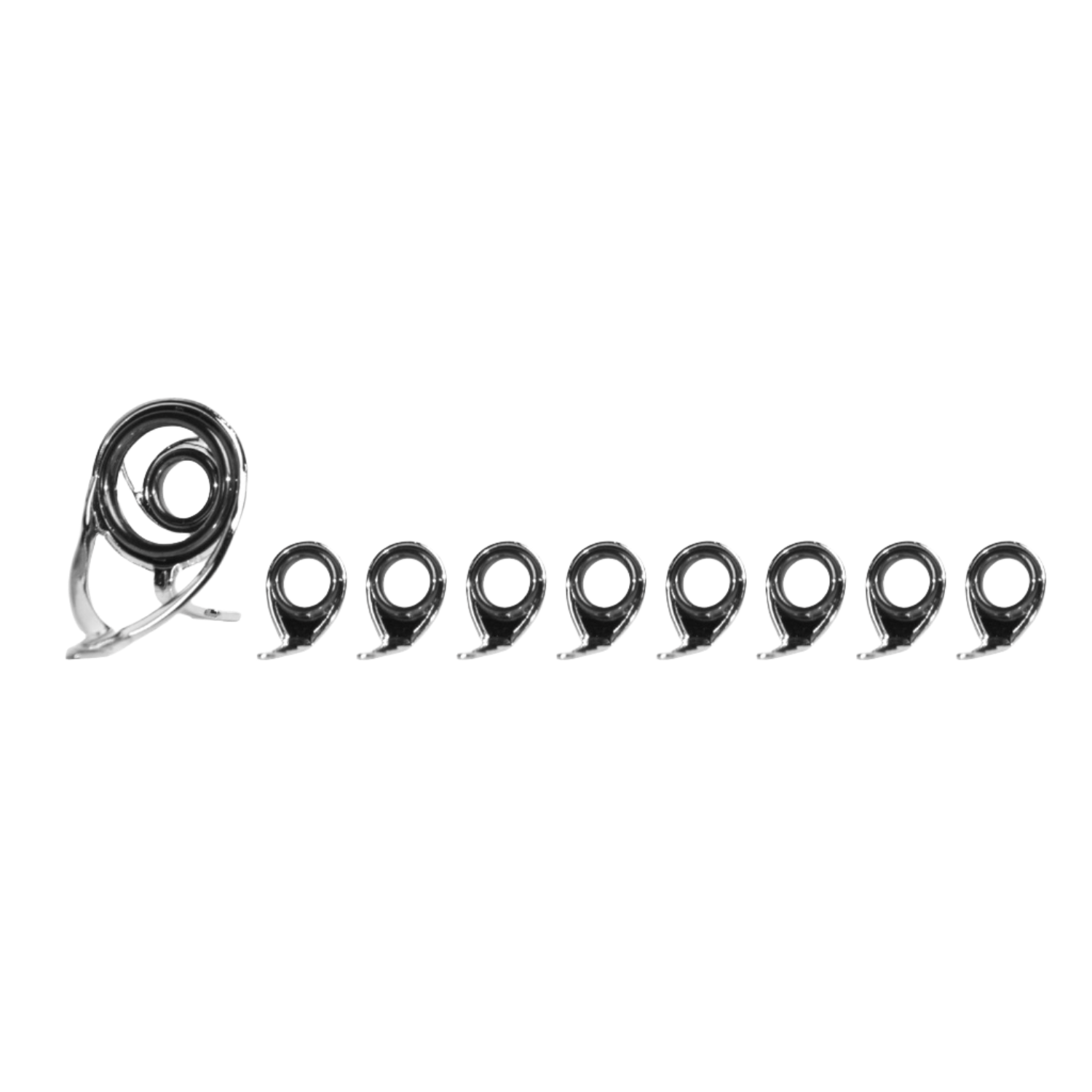

MicroWave 12-6 Casting Guide Set - Single Foot
Specifications
About American Tackle Co.
MicroWave 12-6 Casting Guide Set - Single Foot
Product Details
These new MW12, MW18, and MW20 sets are the most advanced "Ultramodern" line control systems of all time. They incorporate award winning MicroWave Line Control Technology with Snagless frame designs and new dimensions to provide the ultimate in fishing rod line management improving both angler and rod performance.
Applications:
- Snagless spinning & casting frame designs
- Award winning line control technology
- Strong 316SS frames available w/Nanolite and Duralite rings
- Light weight but strong construction
- Available in Chrome, TiON Titanium or Black Diamond finishes
- Offered with Duralite or Nanolite rings
MW12 - Casting Set - Single Foot
| Material | Black | Black Running | Chrome | Chrome Running | TidalWave | Titan Running |
|---|---|---|---|---|---|---|
| Nanolite | NBMW12-SET-C | NBTC-5.5 | NCMW12-SET-C | NCTC-5.5 | NOIMW12-SET-C | NITC-5.5 |
| Duralite | DBMW12-SET-C | DBTC-5.5 | DCMW12-SET-C | DCTC-5.5 | DOIMW12-SET-C | NITC-5.5 |
Stripper Size: 12/6 | Transition Size: N/A | Running Size: 5.5 | # of Guides in Set: 9
MW12 Specifications
| Black | Chrome | TiON | Height A | Height B | Height C | Weight | Ring ID | Foot 1 | Foot 2 | Total Length |
|---|---|---|---|---|---|---|---|---|---|---|
| NBMW-12/6 | NCMW-12/6 | NOIMW-12/6 | 8.65mm | 12.75mm | 18.15mm | 1.5 gm | 9.85mm | 6.40mm | 7.15mm | 31.50mm |
Measurement Key:
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
